Microwave transverters

A family of transverters for 13 cm, 9 cm, 6 cm and 3 cm, each built into a die-cast enclosure with its own sequencing, plus a 3 cm power amplifier and SMA relay switching.

13 cm · 9 cm · 6 cm · 3 cm

13 cm transverter
9 cm transverter on the bench

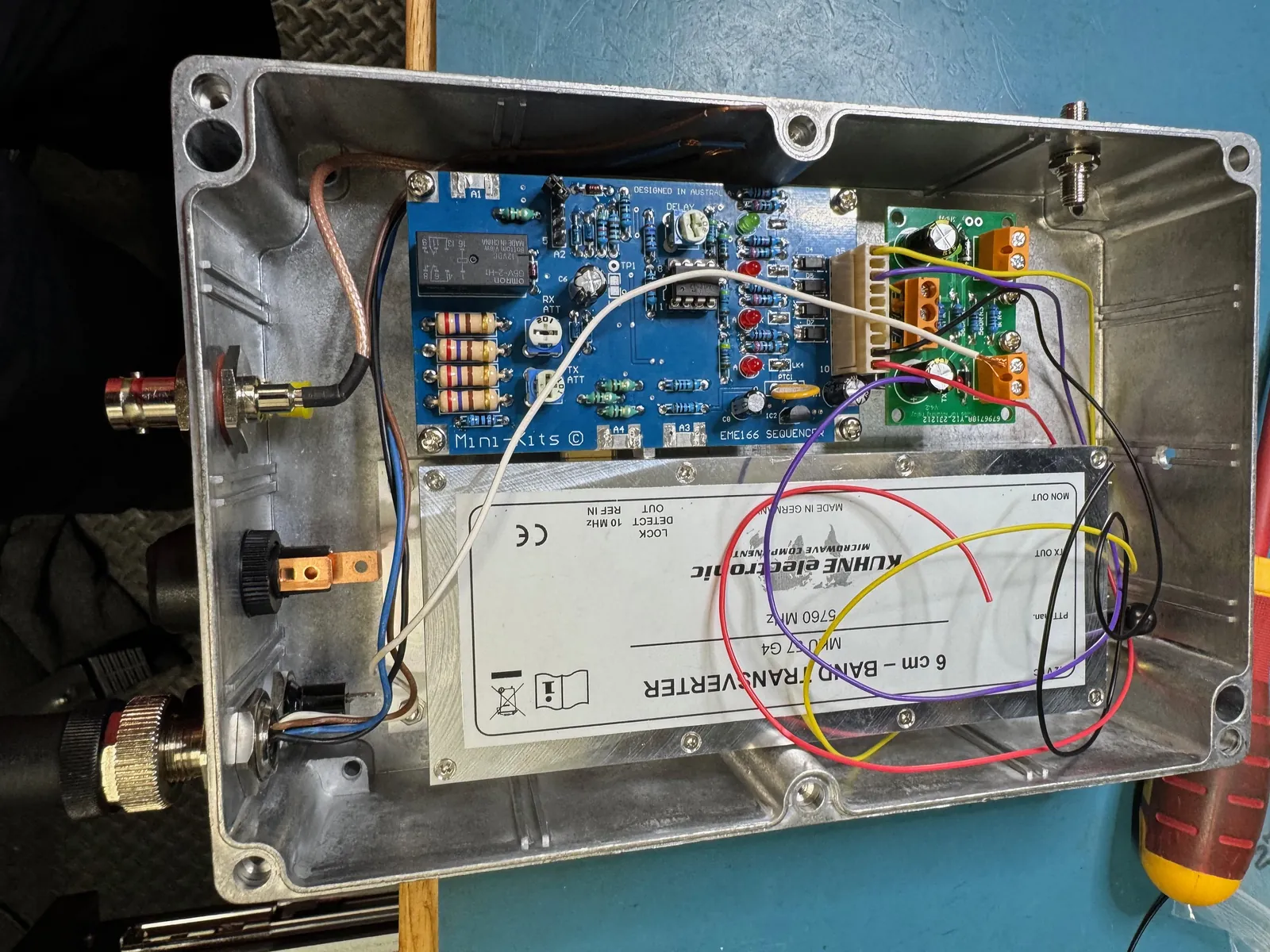

6 cm transverter

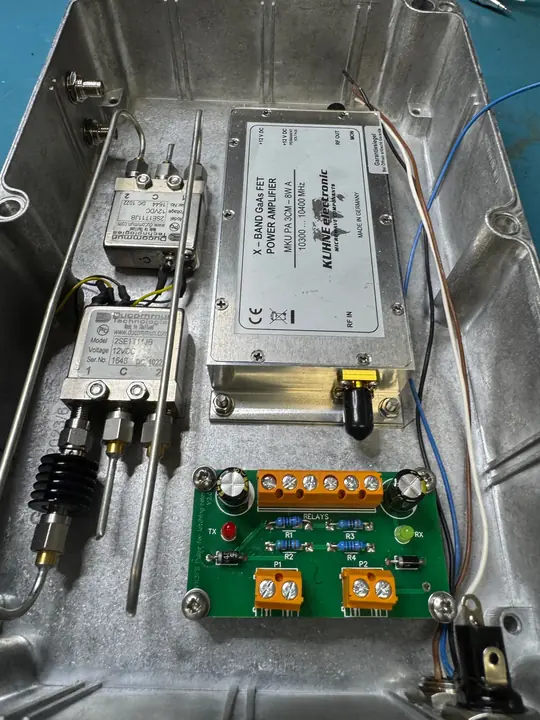

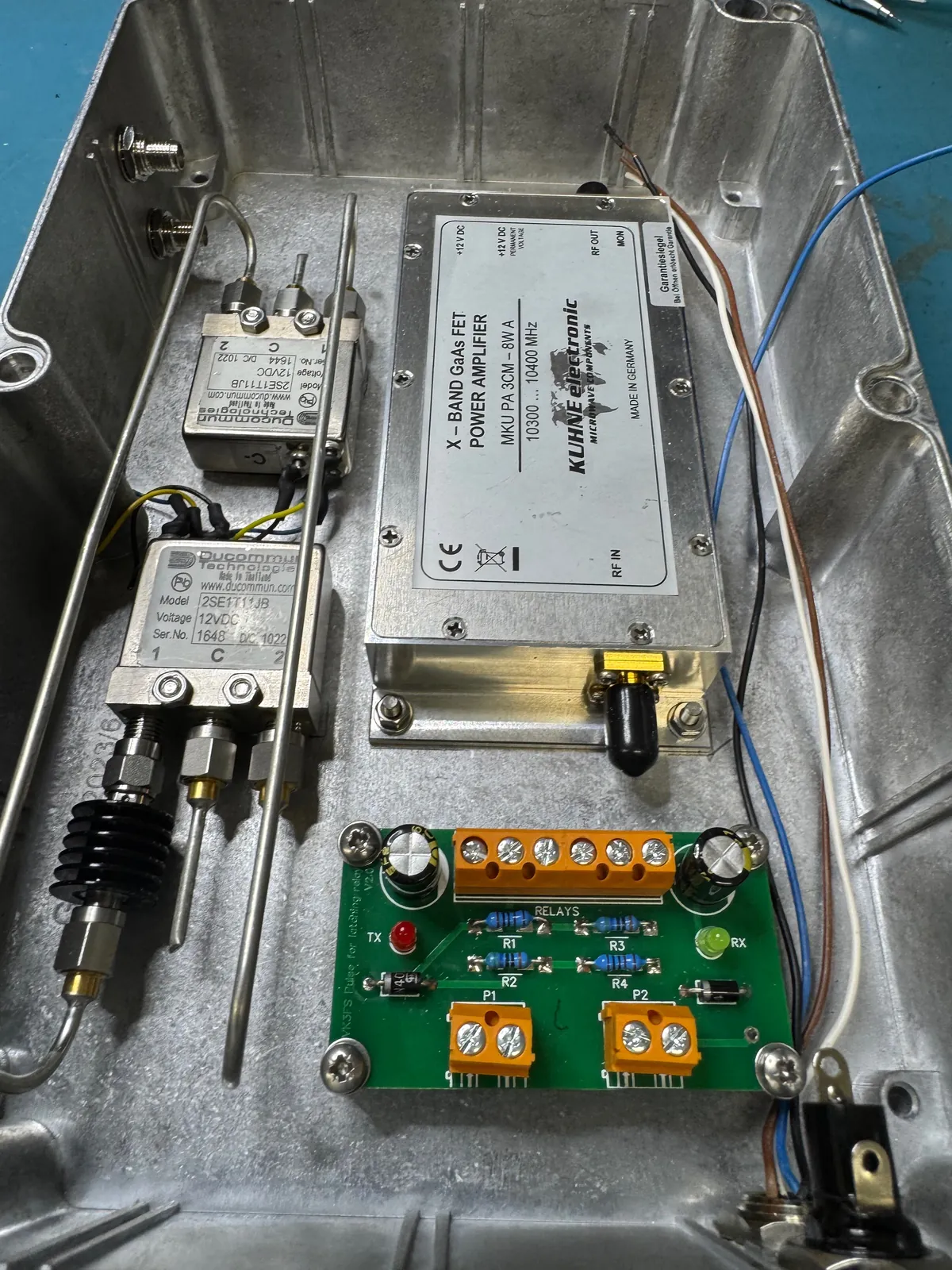

3 cm power amplifier and sequencer

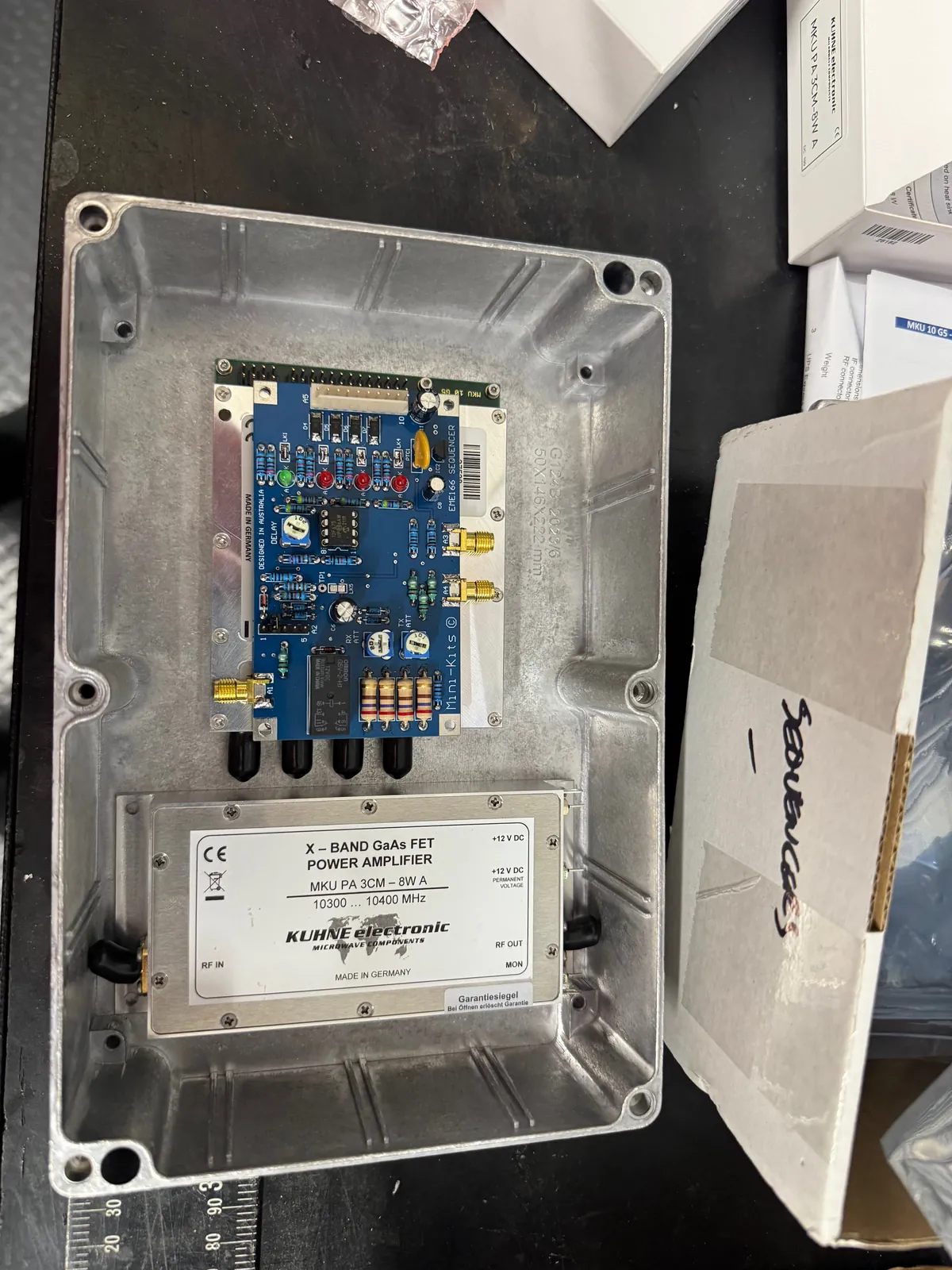

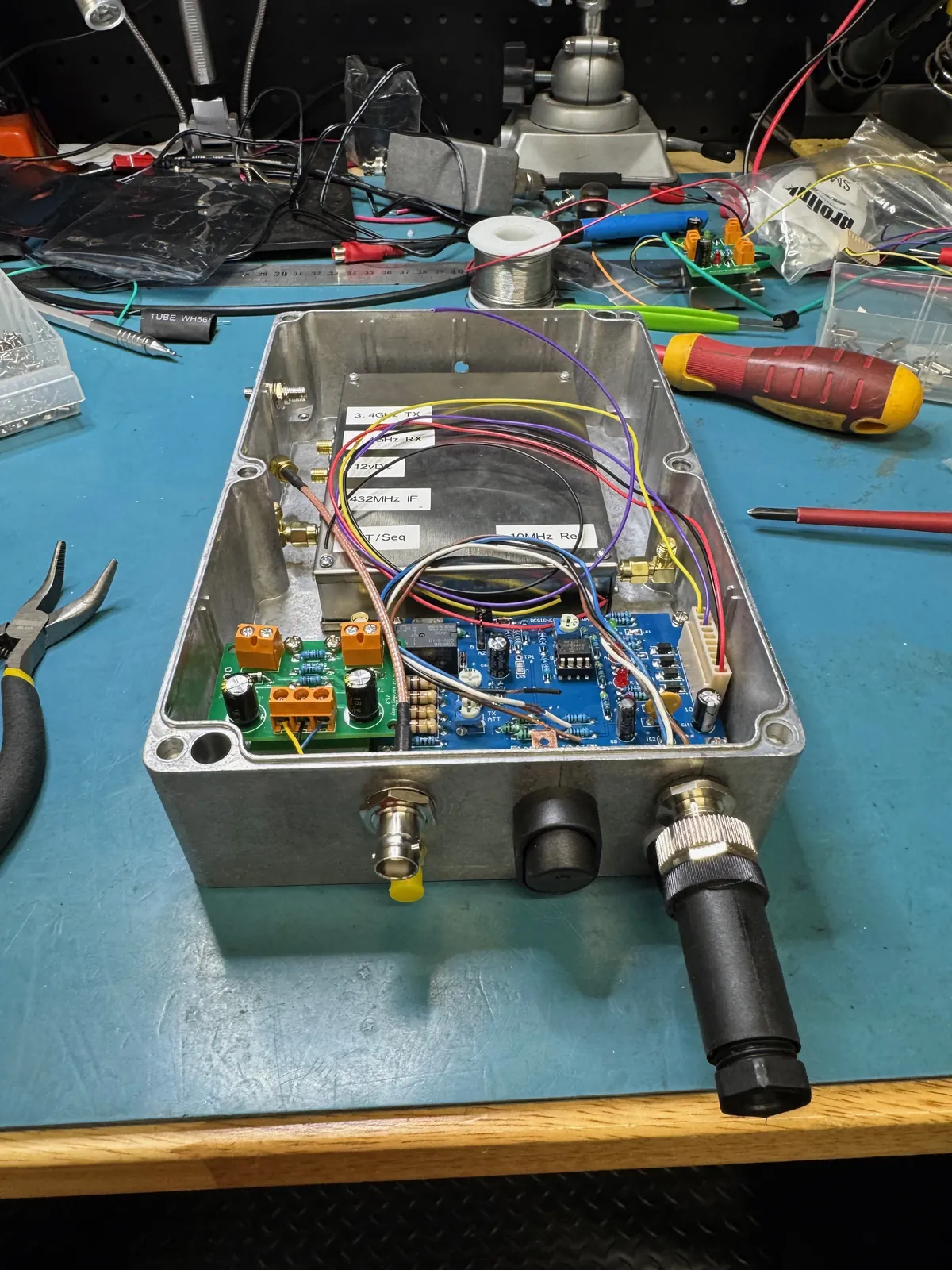

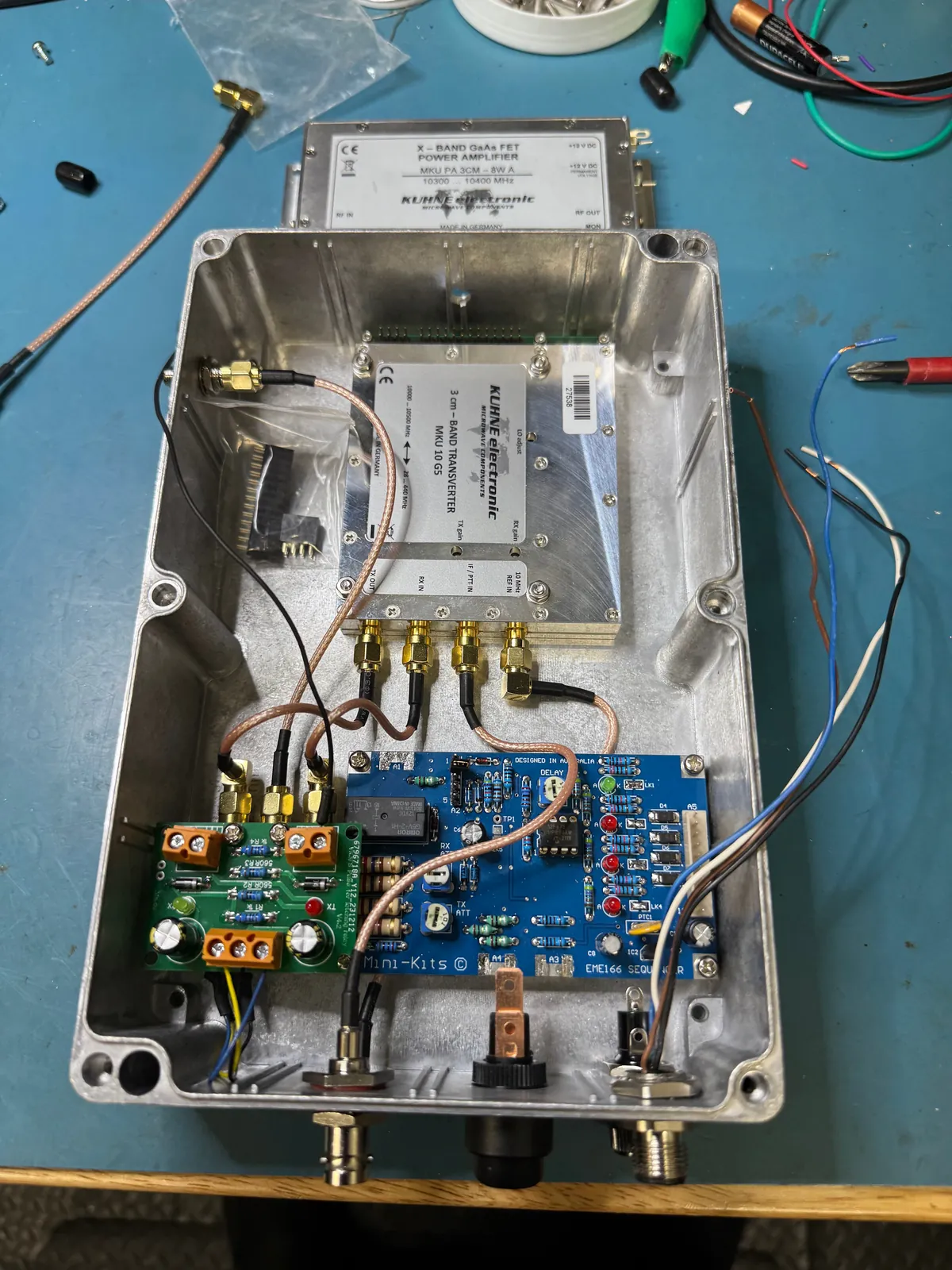

3 cm transverter build in progress

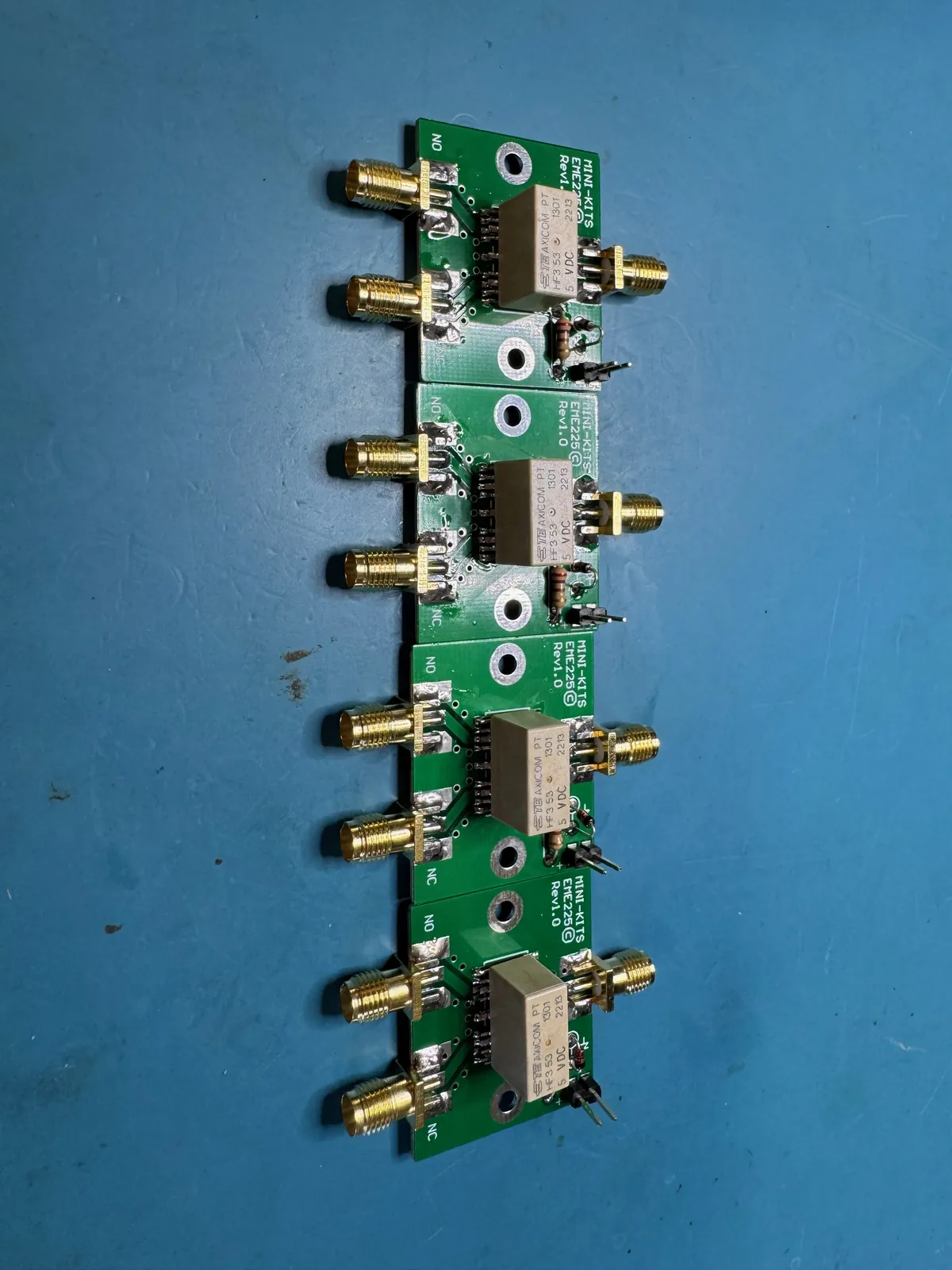

SMA microwave relay boards

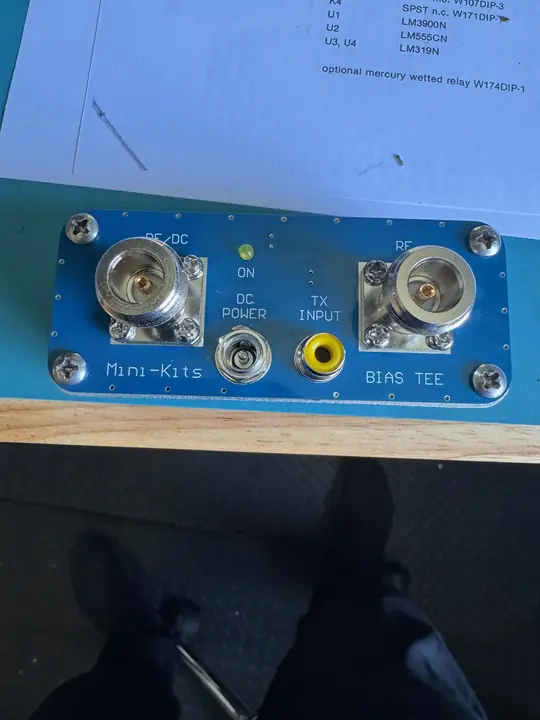

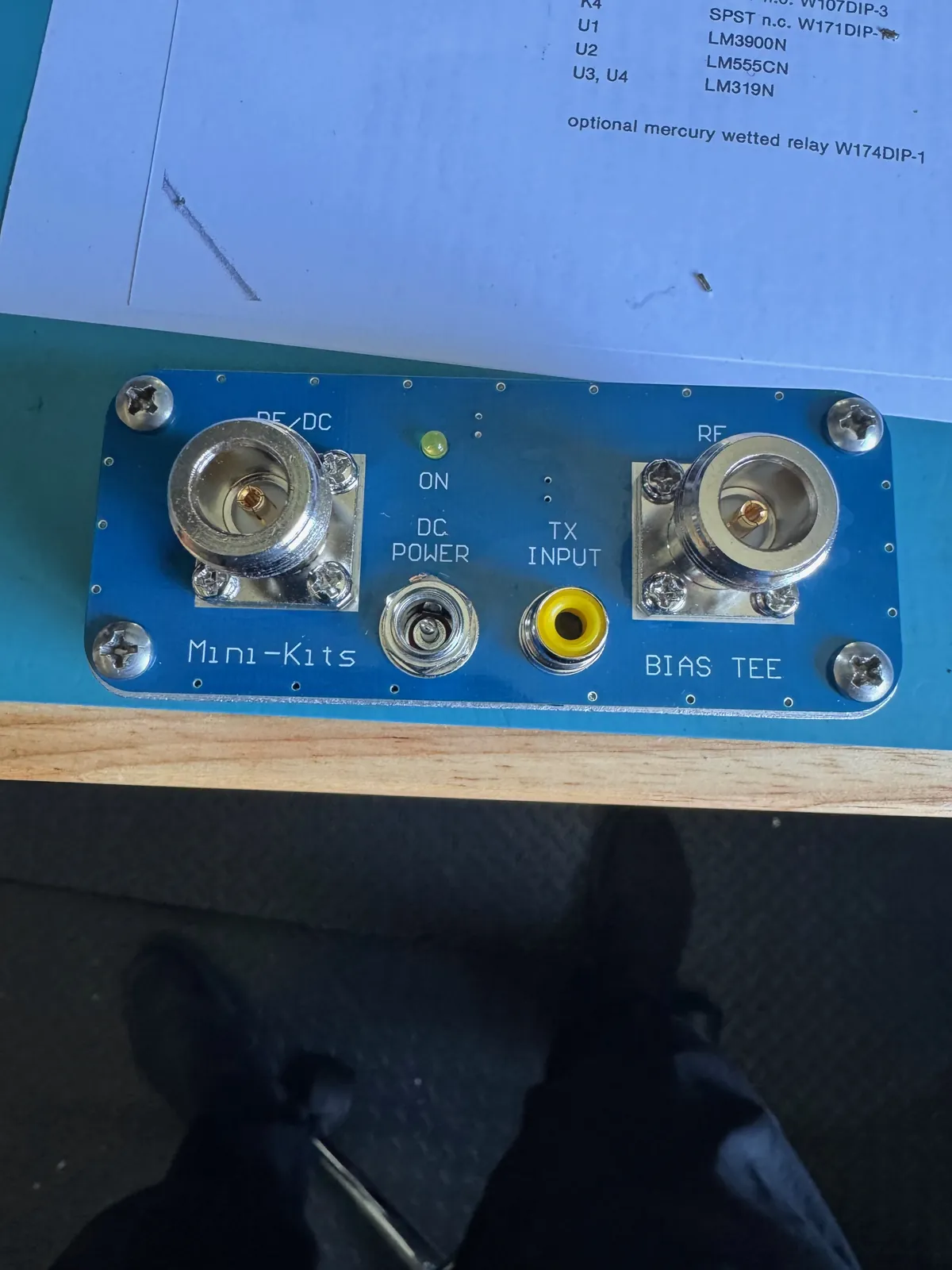

Minikits bias tee

3 cm portable

A portable station built around the Icom IC-905 and a 3 cm transverter, with a small dish on a tripod, ready to take out for portable operation.

IC-905 · 3 cm transverter · dish

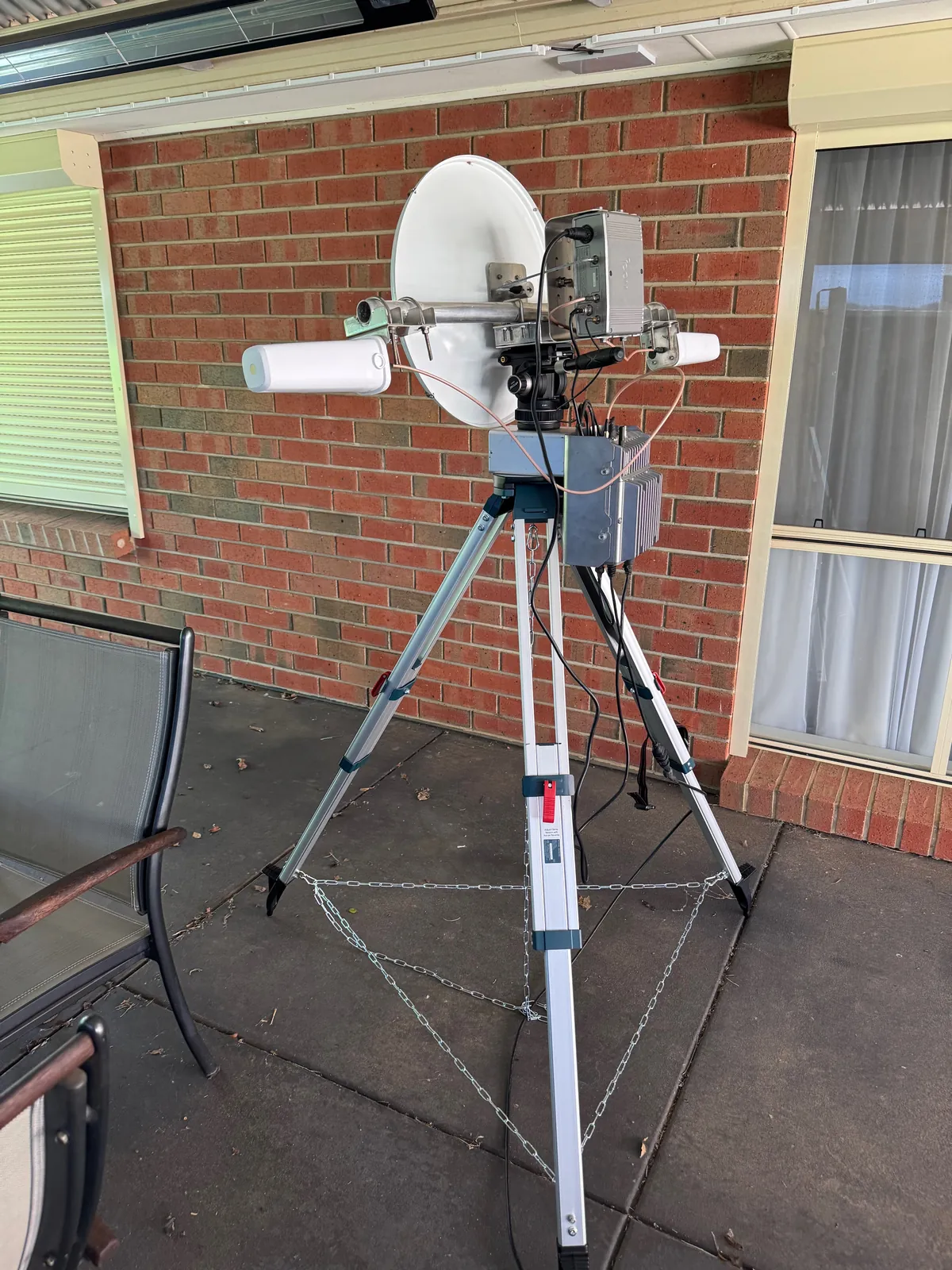

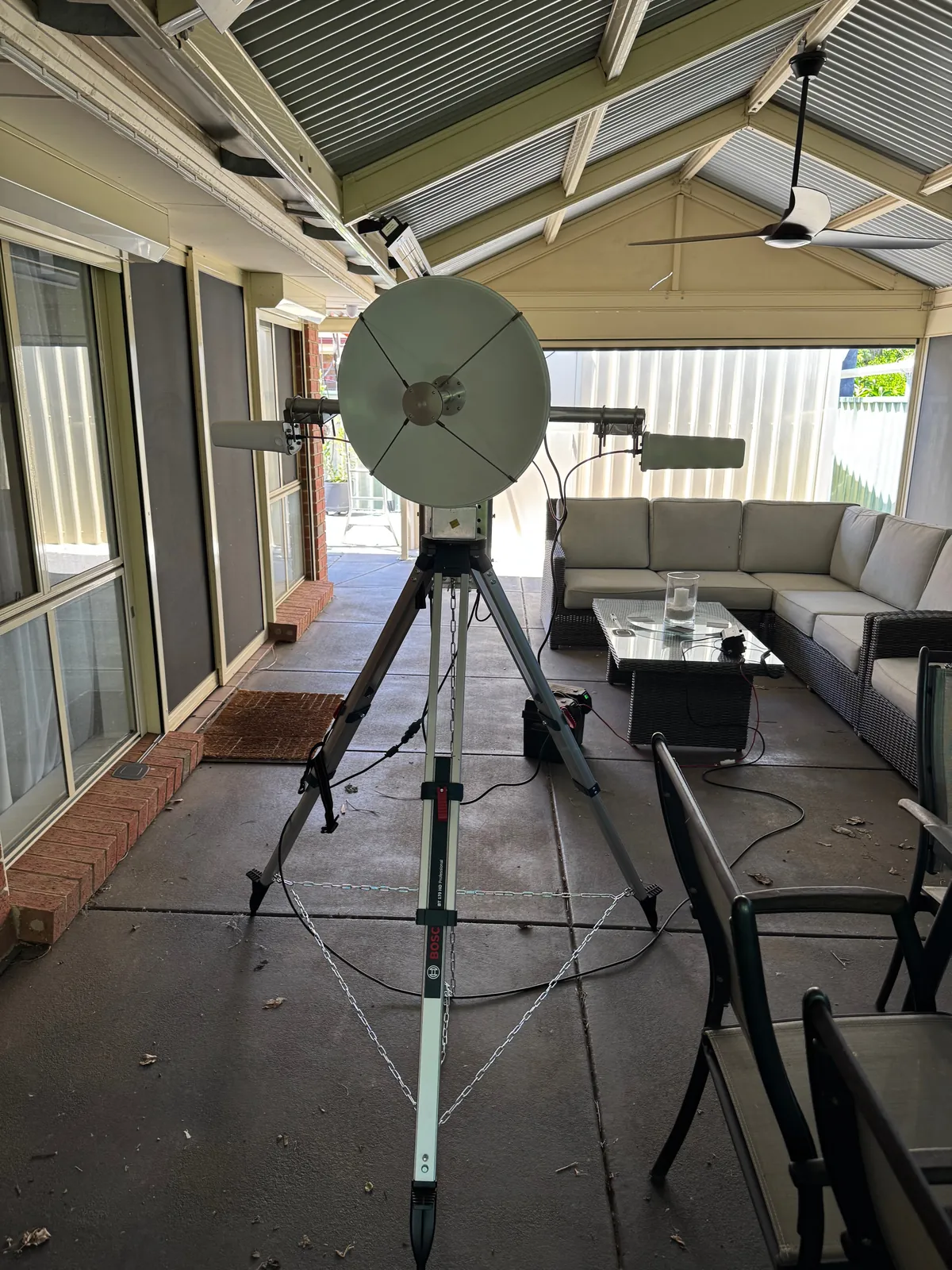

3 cm portable station on its tripod

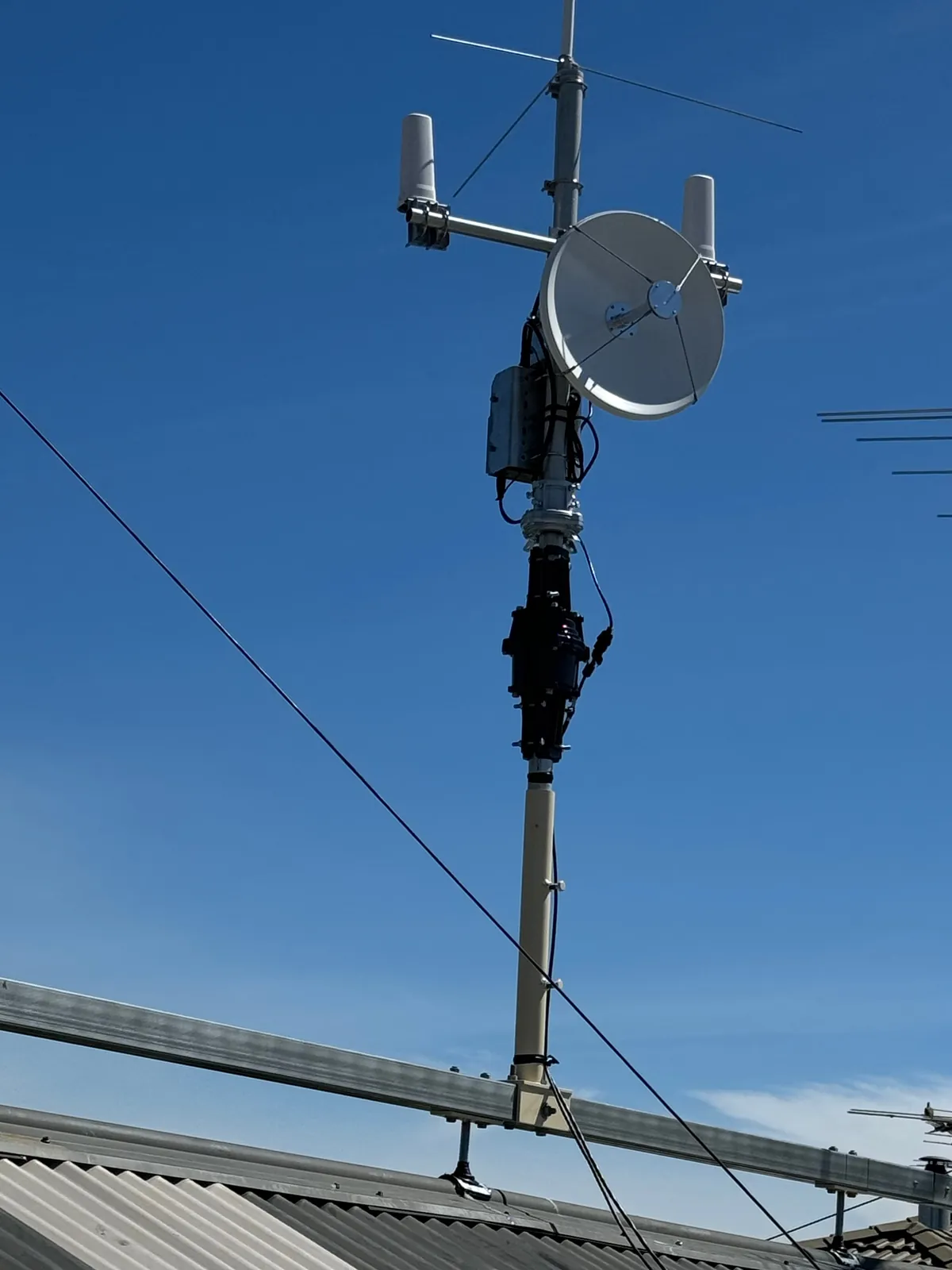

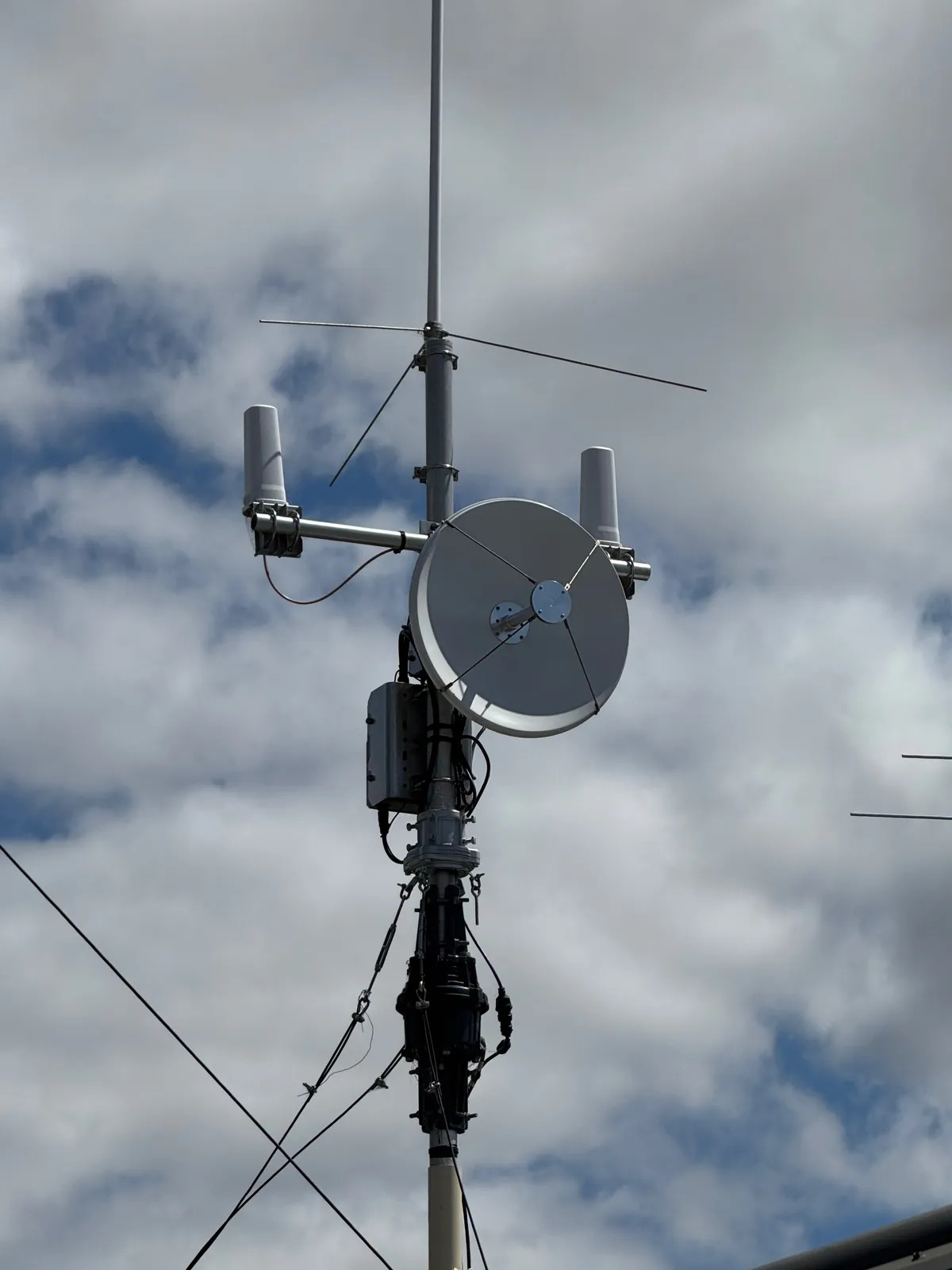

IC-905 dish and RF unit on the mast
IC-905 RF unit, 2 m to 3 cm

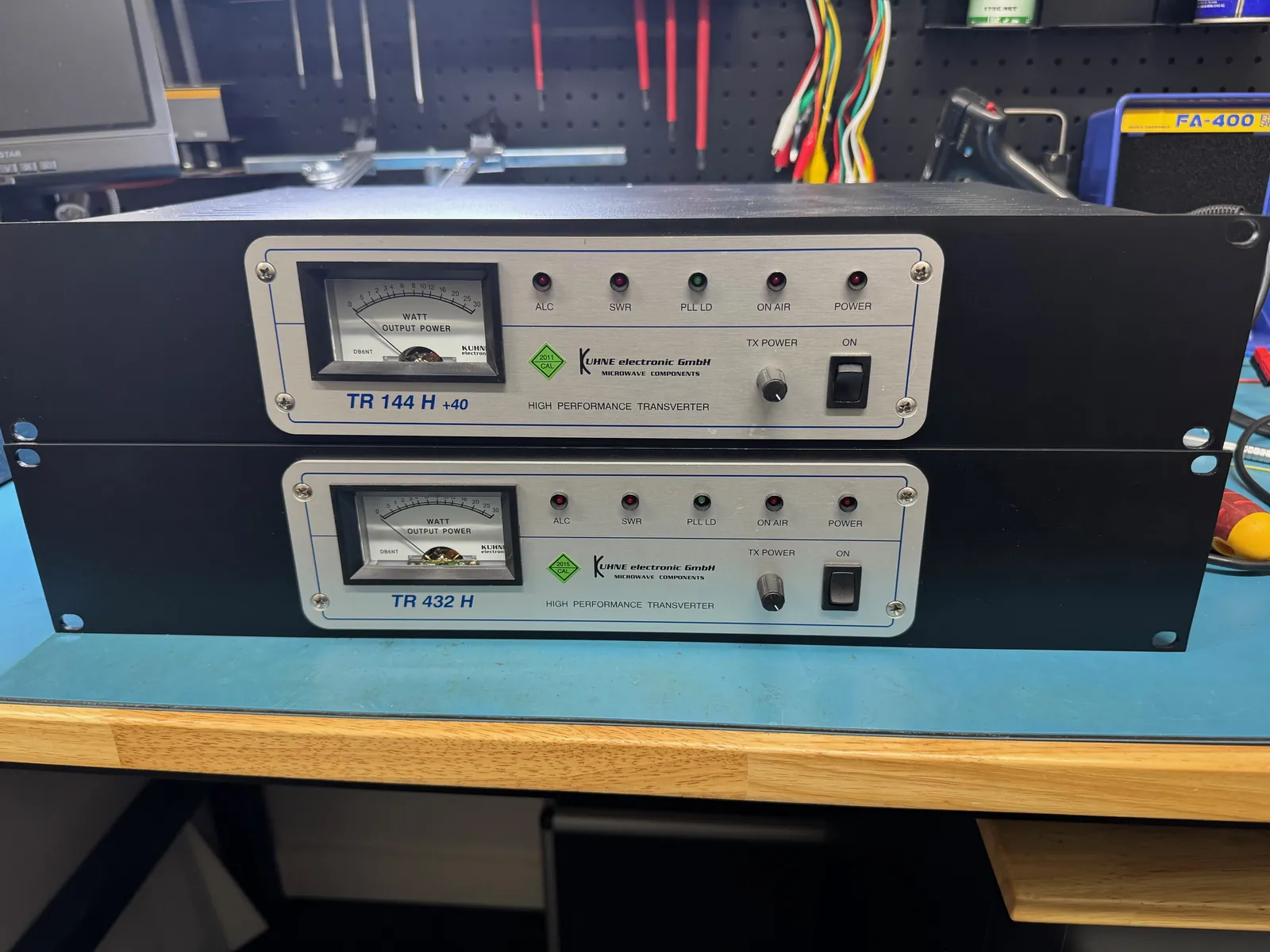

Kuhne TR144 and TR432 transverters, rack-mounted

VHF & UHF

Kuhne TR144 and TR432 transverters moved into rack cases, masthead preamps, polarisation switching for the satellite antennas, and the Emtron DX-2V 6 m linear.

6 m · 2 m · 70 cm

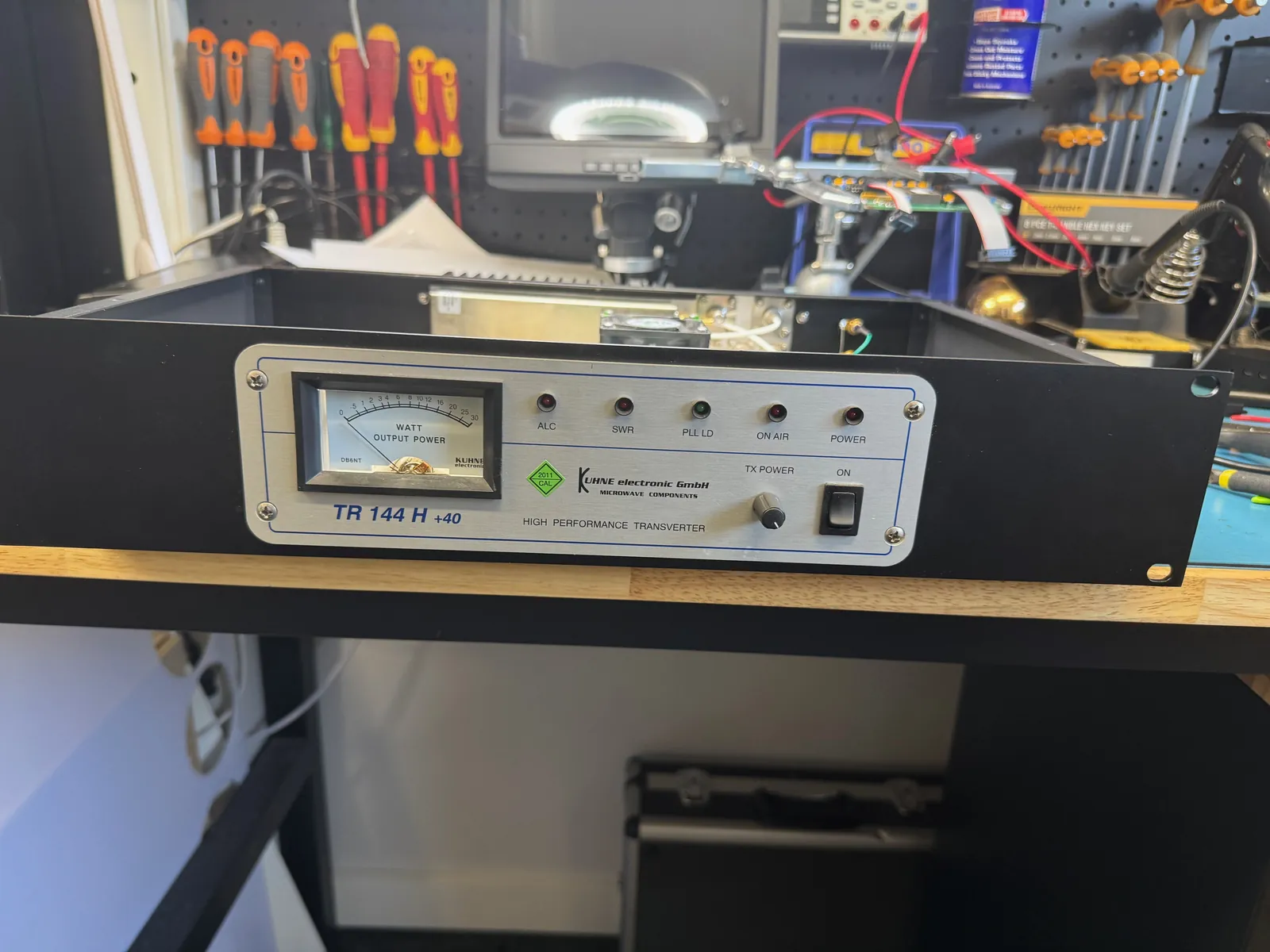

Kuhne TR144H in its rack case
Inside the TR144 rack conversion

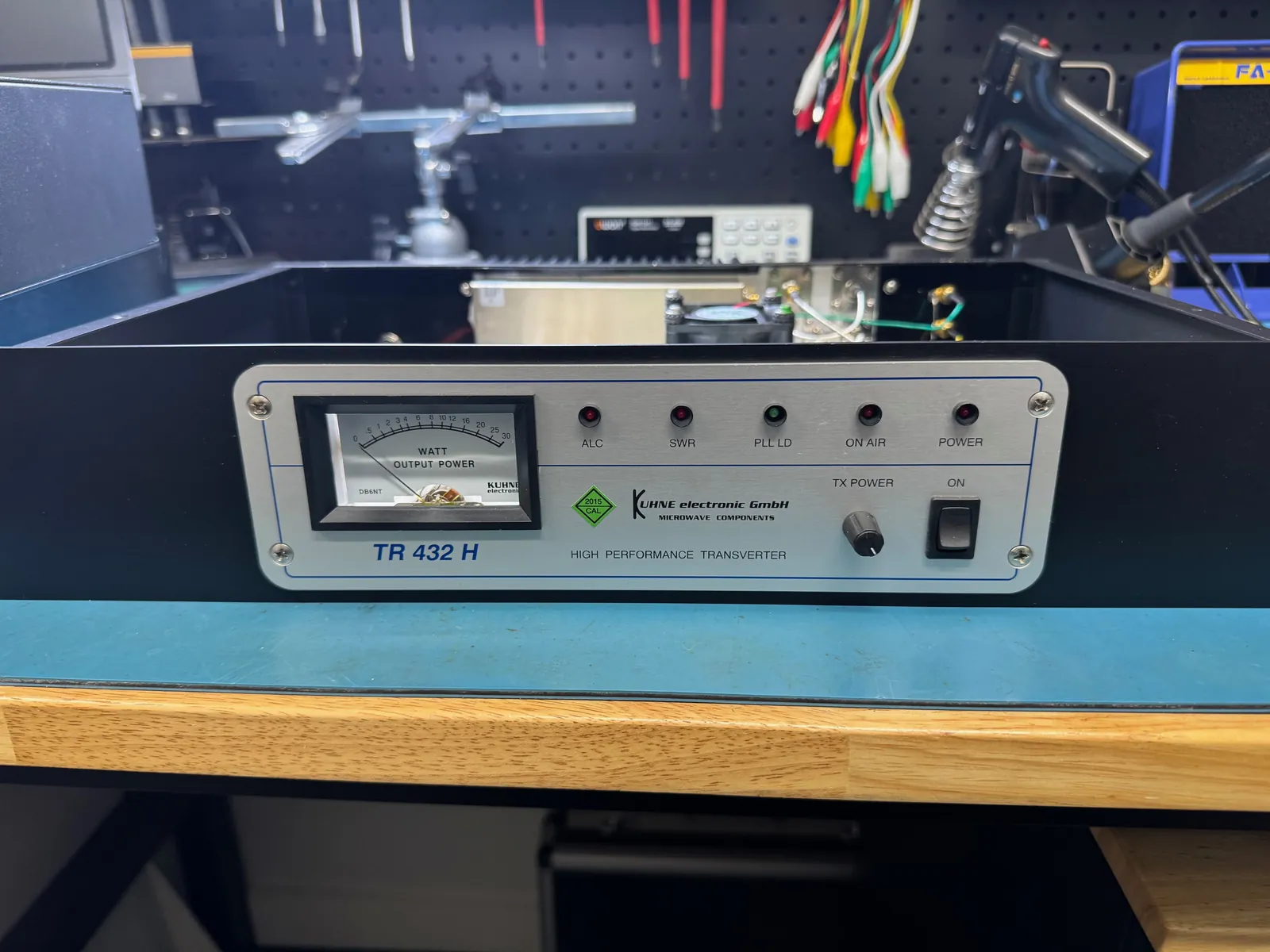

Kuhne TR432H rack case

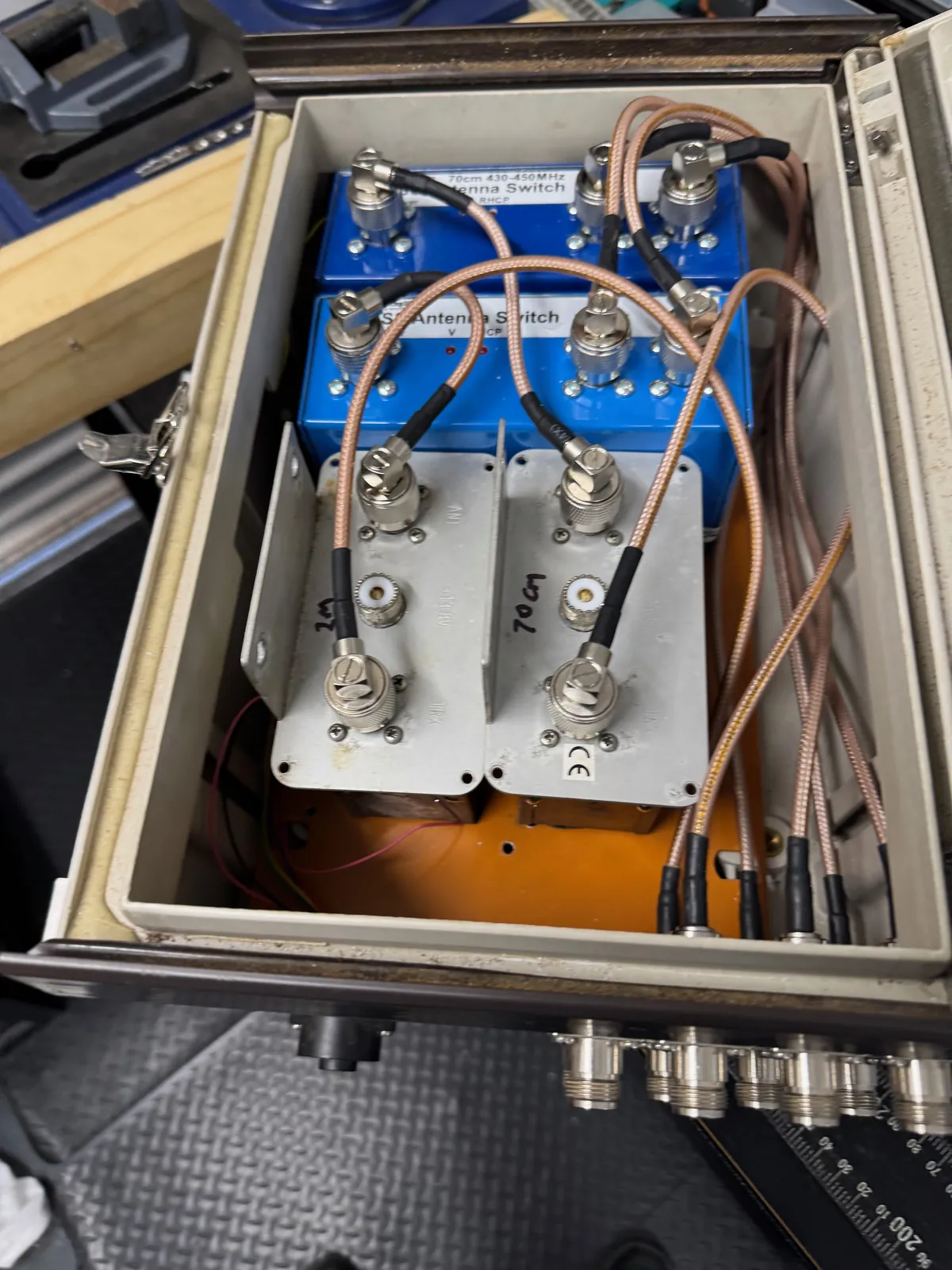

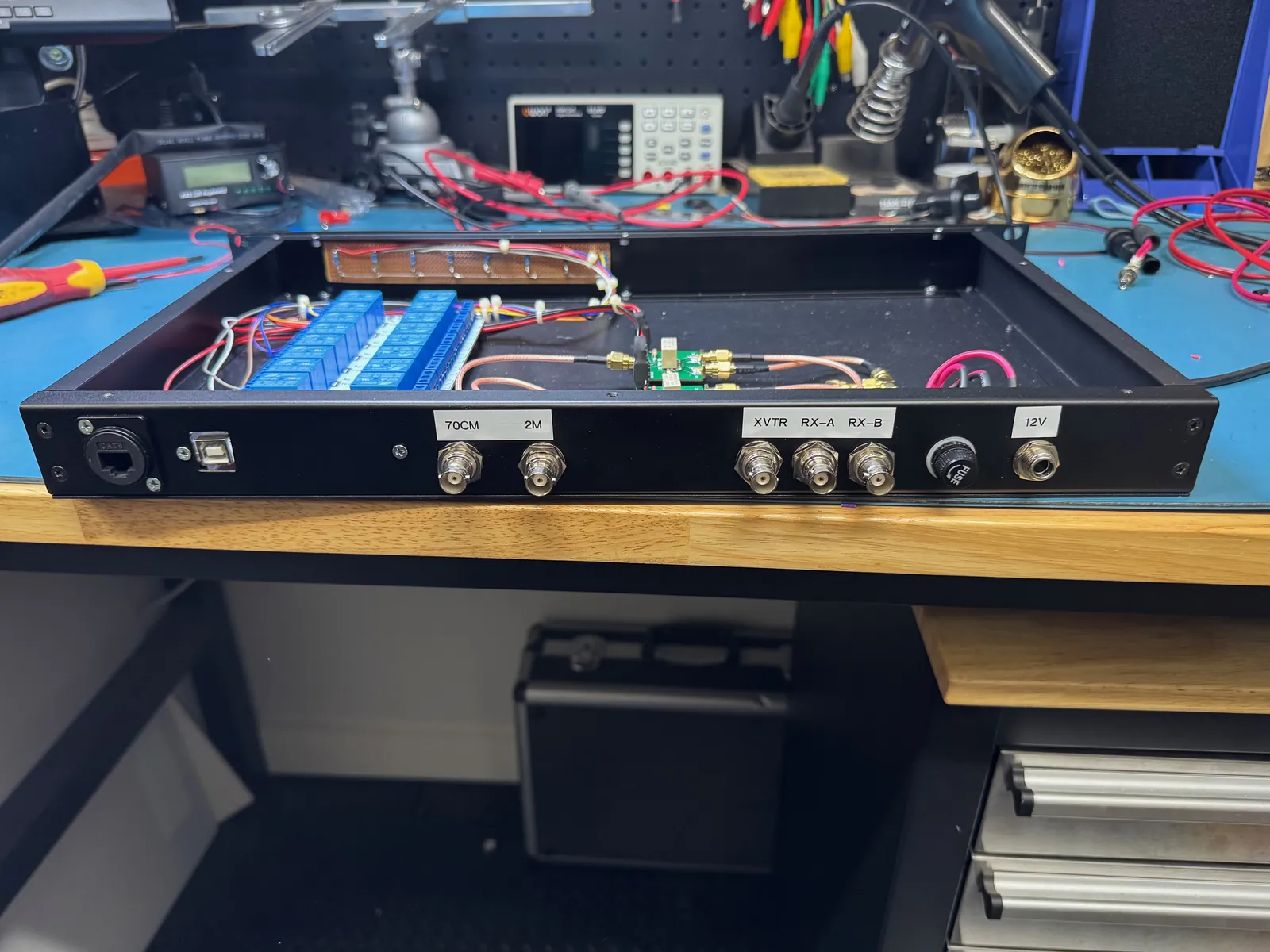

2 m / 70 cm preamps and polarisation switching

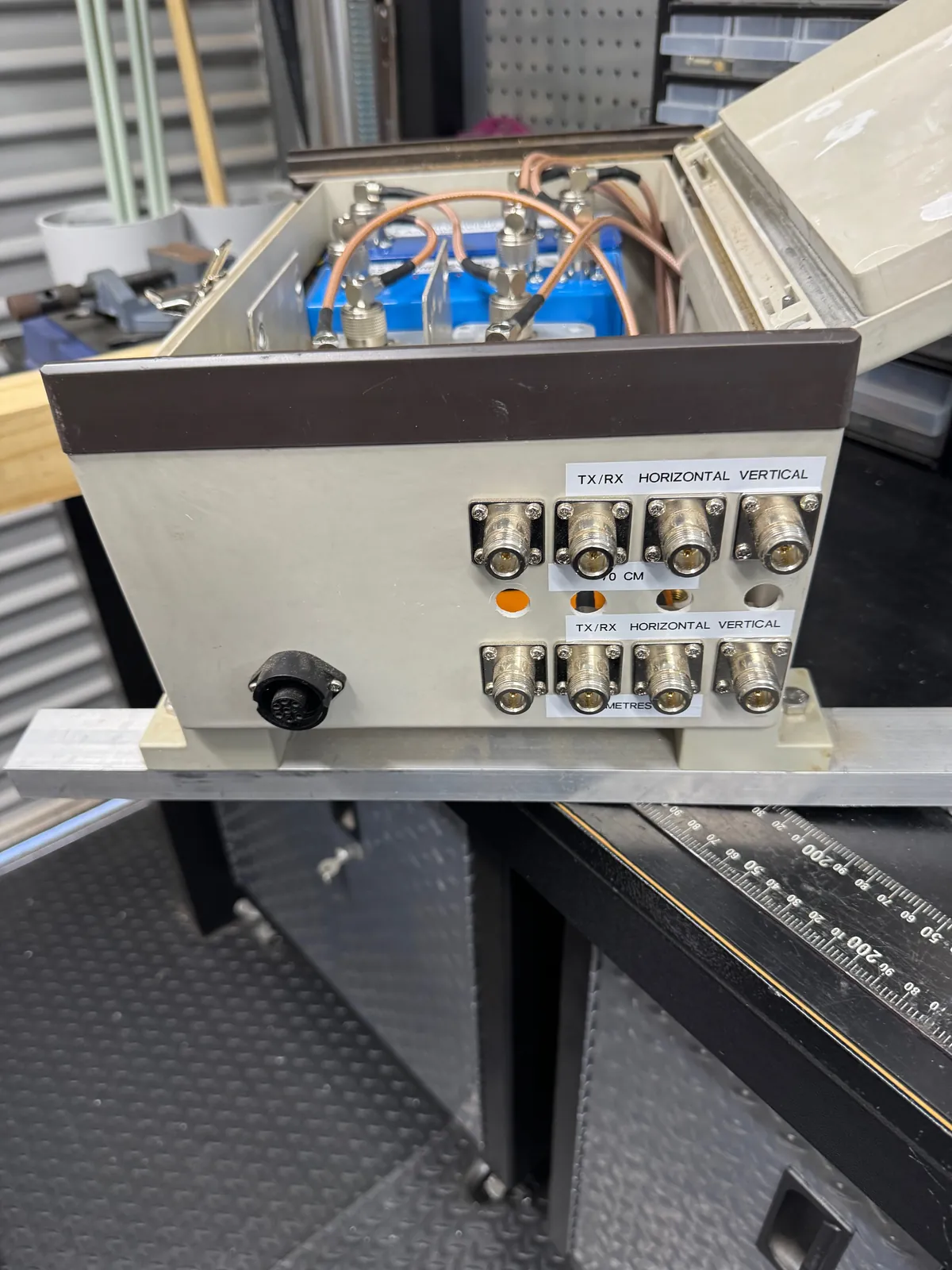

Polarisation switcher, horizontal / vertical

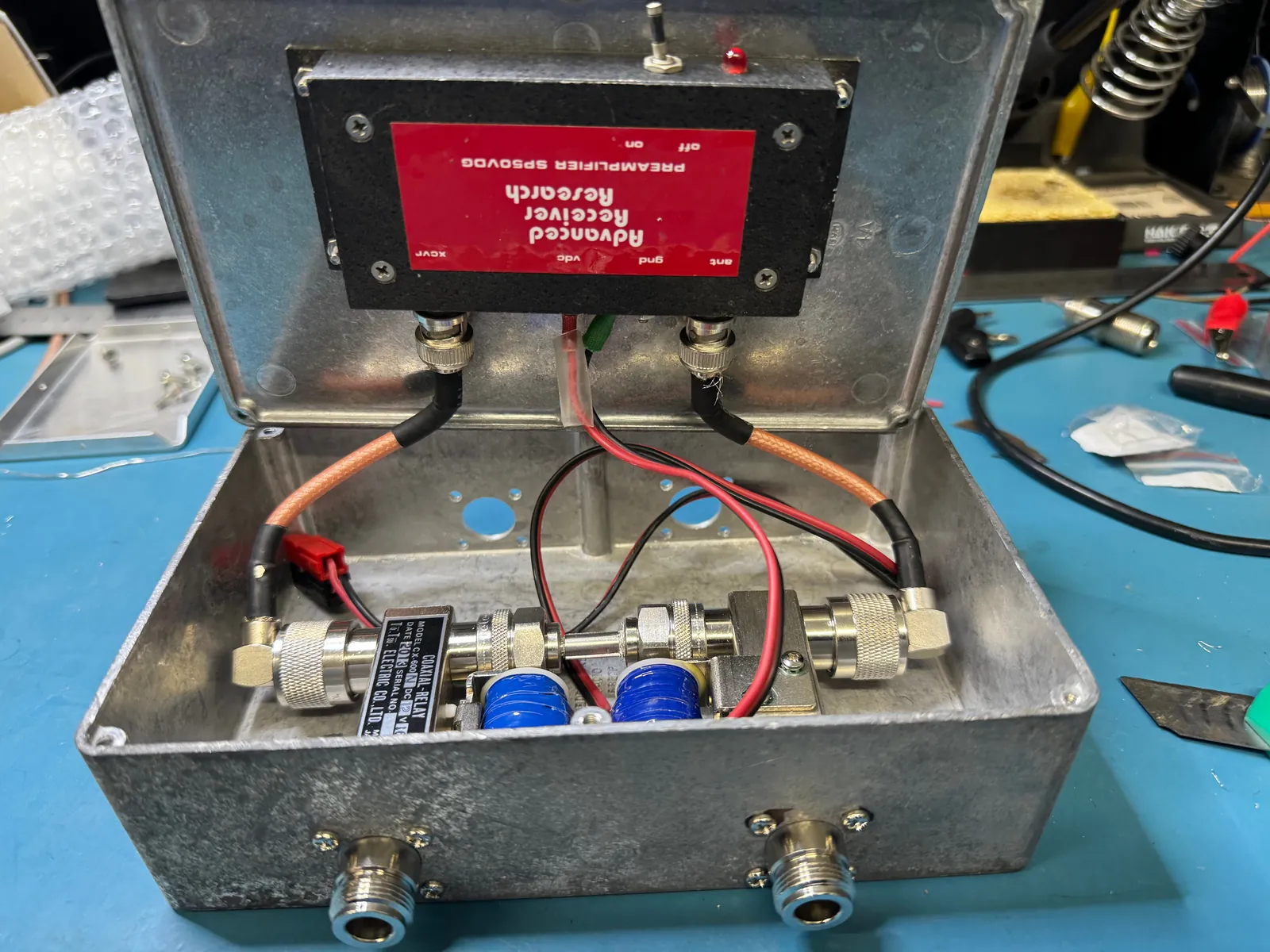

6 m masthead preamp (ARR)

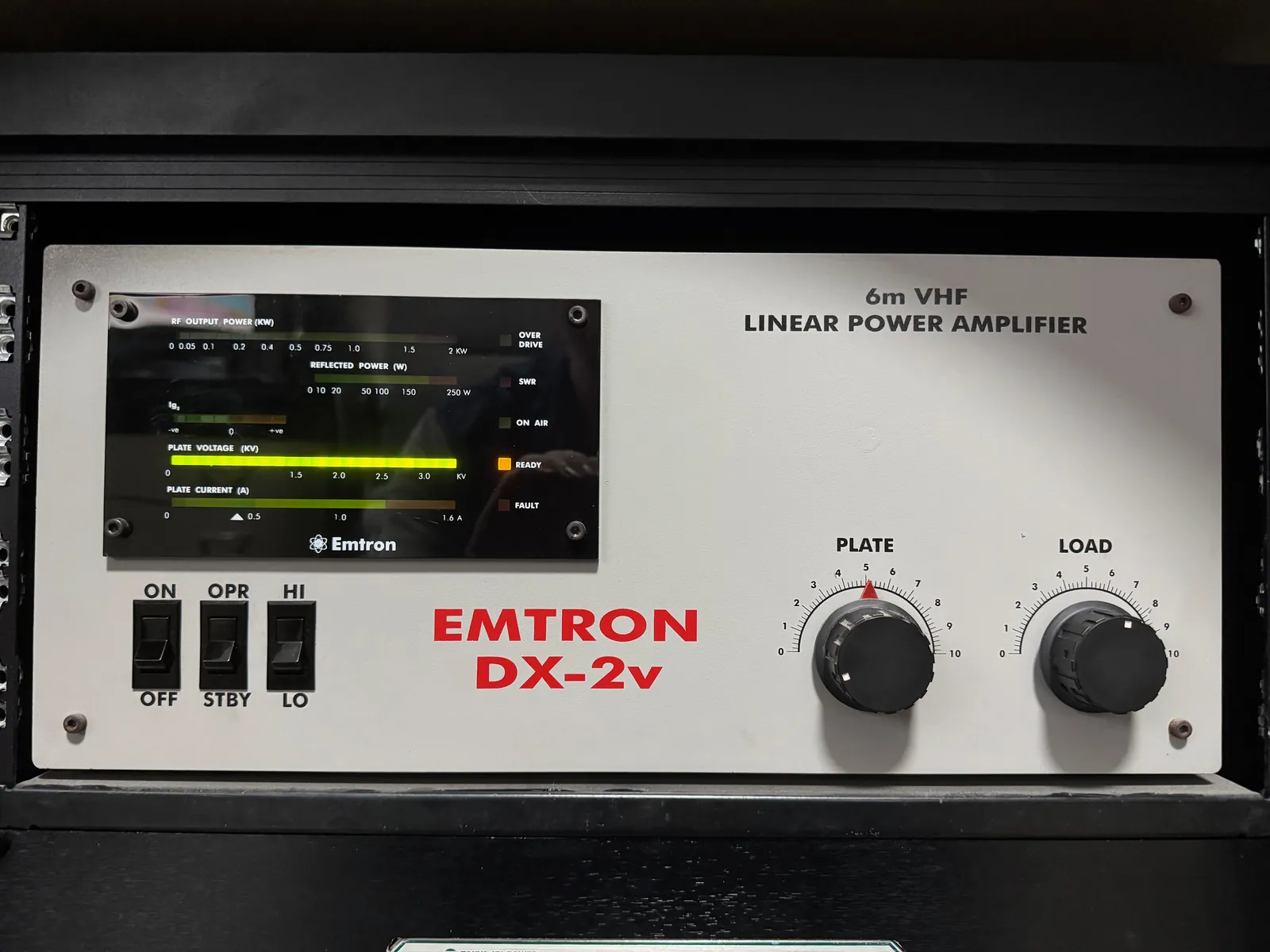

Emtron DX-2V 6 m linear amplifier

Station automation

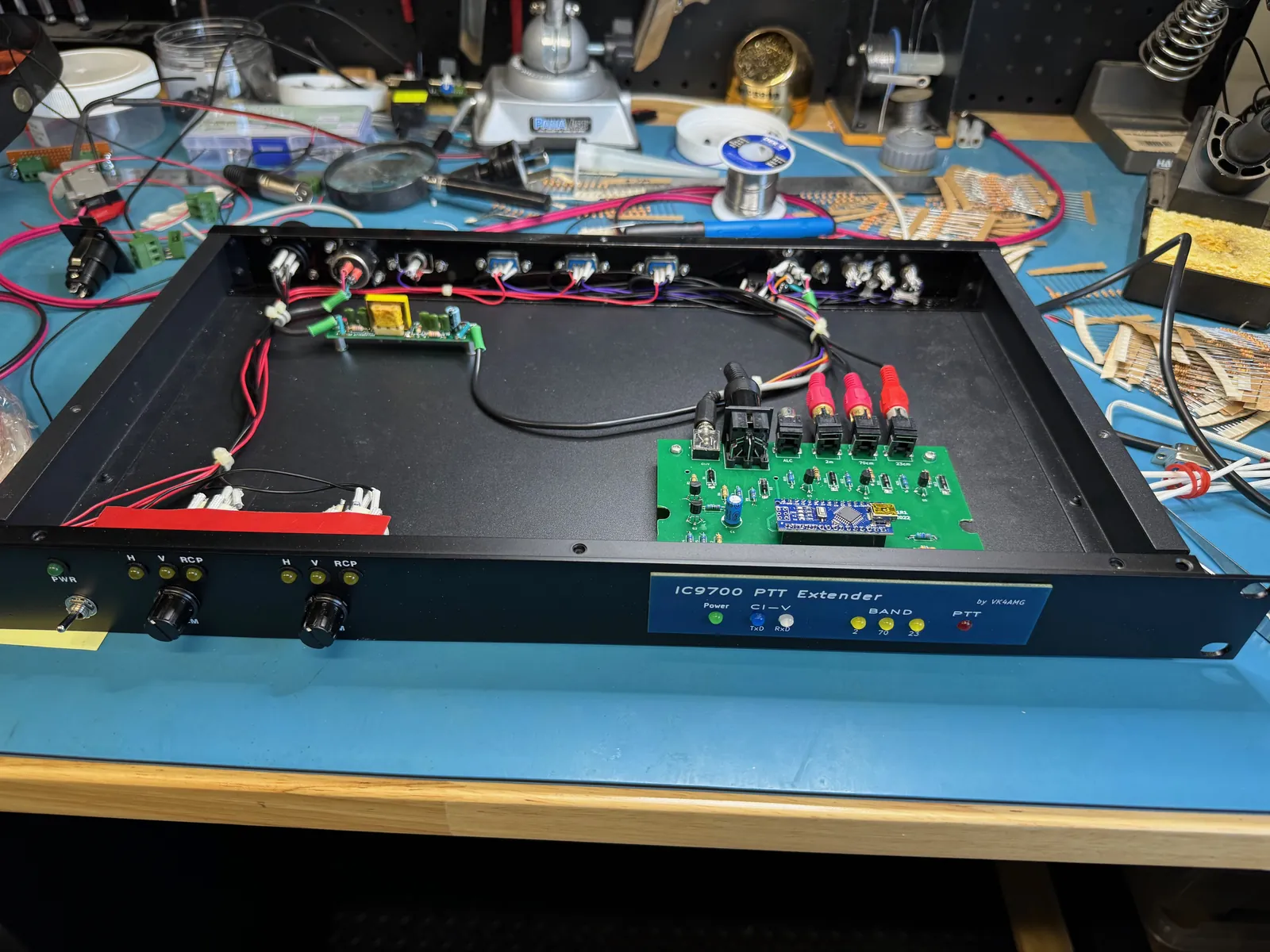

The Flex 6700s work with a PGXL amplifier, TGXL tuner and Antenna Genius switches. Node-RED flows tie it all together using CI-V and VITA-49 CAT control, and custom rack units handle PTT, band and transverter switching for about eight transceivers.

Node-RED · CI-V · VITA-49
